WeatherDeck Fuse Panel 4P
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 – protected against immersion up to 1 meter for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting circuit for remote switching and dimming
- Available in 2, 4, 6, and 8 circuit models
- Each panel can be mounted in four different orientations

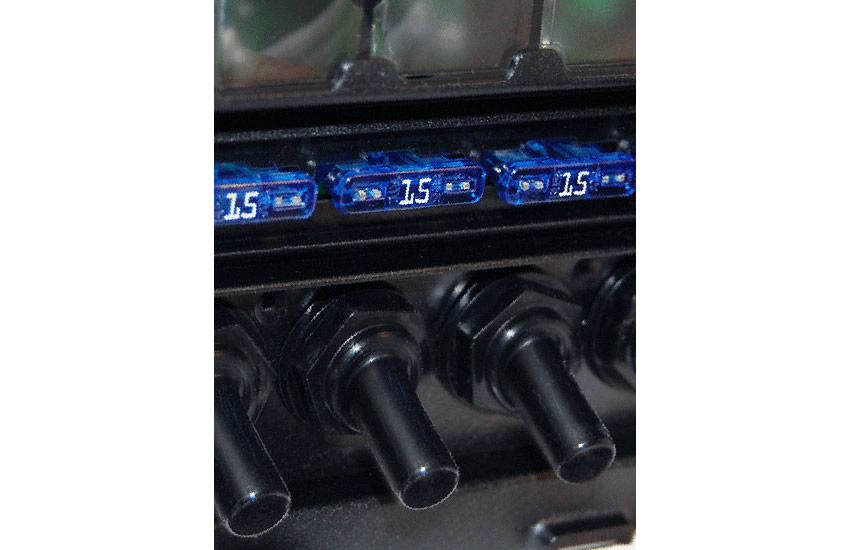

- Integrated ATO/ATC fuse based circuit protection
- Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.
| Weatherproof | Waterproof |
| Positions | 4 |
| Nominal Voltage | 12V DC |
| Circuit Protection | Fuse |
| Maximum Amperage | 15A @ 12V DC (per circuit) |
| Panel Cumulative Rating | 60A |
| Backlit Label | Bicolored LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12V DC |
| Material | Reinforced Polycarbonate |
| Height | 4.30in (109.22 mm) |
| Width | 3.88in (98.55 mm) |
| Depth | 2.50in (63.5 mm) |
| Weight | 0.90lb (0.41 kg) |
| Weight | 0.90lb (0.41 kg) |
WeatherDeck Fuse Panel 4P
-
Panel Type
Fuse Panel
StatusNew
-
Panel Connections
4 with Fuses
DescriptionWaterproof Fuse Panel
Suitable forCars, Vehicles, Boats and RV
For flybridge and open cockpit applications.ColorGrey
MaterialReinforced Polycarbonate
Max Power Consumption12VDC/15A/180Watt per circuit
12V/60A/720Watt in total -
Extras
IP67 – protected against immersion up to 1 meter for 30 minutes.
Independent label backlighting circuit for remote switching and dimming.
Integrated ATO/ATC fuse based circuit protection.
Bicolored LEDs.Warranty3-Years
Country of OriginUSA
-
Total Weight (KG)
0.41
Total Dimensions (WxHxD) (mm)98x109x63
AvailabilityUsually in 9working days
