Blue-sea

Heavy Duty Selector Switch

MFR #3003

Τιμή: 122,97€ + ΦΠΑ

Online τιμή: 118,05€ + ΦΠΑ

Διαθεσιμο κατοπιν παραγγελιας

Quick Overview

  • Heavy duty battery Switch
  • Max: 32V DC 500A
  • Cable size 4/0 AWG 120mm²
  • 4 Positions
  • 1/4" M6 Screw holes
  • Material: Tinned Copper
  • 1/2" M12 Stud size
  • Grey color

Heavy Duty Selector Switch

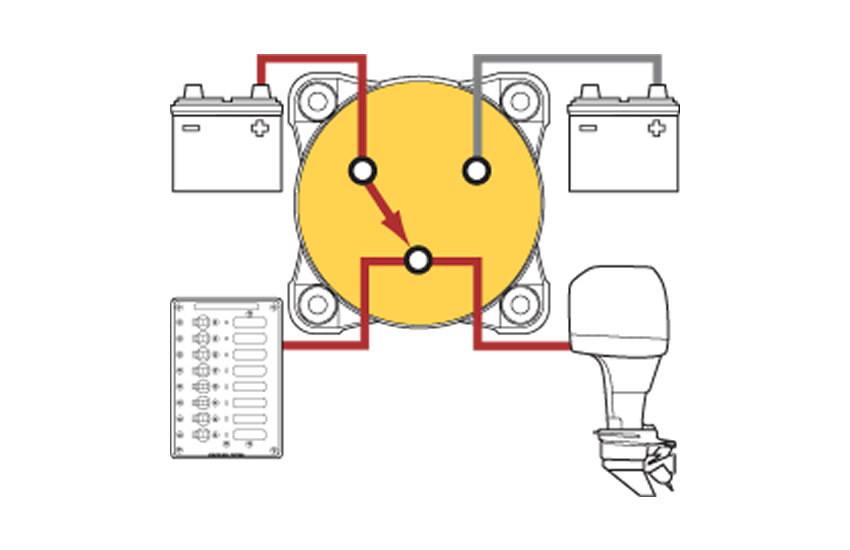

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Includes AFD (Alternator Field Disconnect)
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats

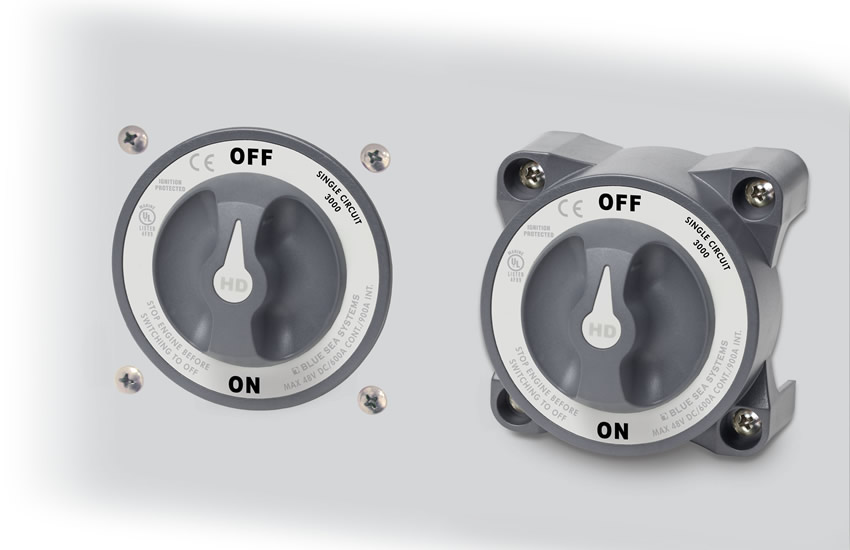

  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables



Switch Type  Selector 4 Position
Color Grey
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect  Yes
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating  500A
Intermittent Rating  700A (5 min)
Cranking Rating 30 sec  1600A

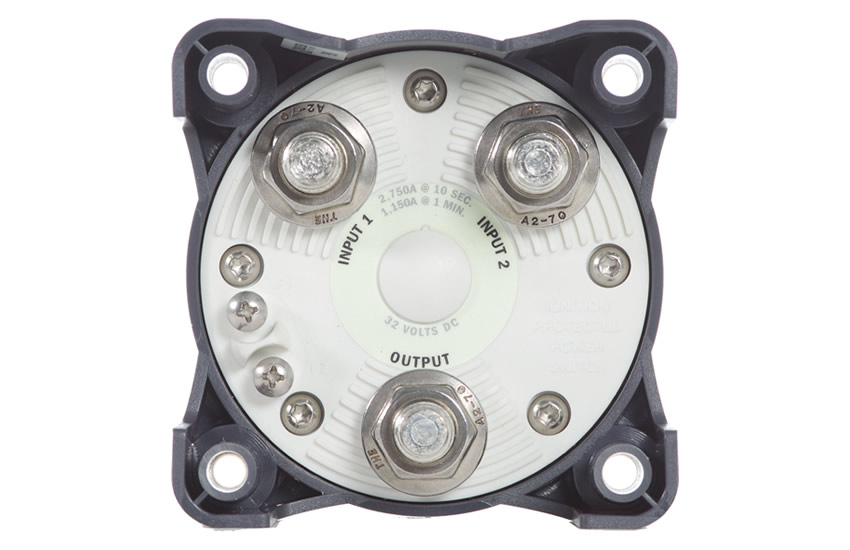

Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables / Terminal
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 1/2" (M12)
Weight 1.25lb (0.57 kg)
Weight 1.25lb (0.57 kg)

Heavy Duty Selector Switch

    STATUS

  1. Status

    New

    Accessory Type

    Battery Switch

  2. GENERAL FEATURES

  3. Description

    Heavy duty battery Switch

    Suitable for

    2x batteries LiFePO4, Li-ion or Lead Acid batteries
    Boats, Cars, RVs

    Color

    Grey

  4. MORE SPECIFICATIONS

  5. Extras

    Max: 32VDC 500A
    Cable size 4/0 AWG 120mm²
    1/4" M6 Screw holes
    Material: Tinned Copper
    1/2" M12 Stud size
    2 Positions.

    Warranty

    3-Years

    Country of Origin

    USA

  6. PHYSICAL

  7. Total Weight (KG)

    0.57

    Total Dimensions (WxHxD) (mm)

    40x40x18

    Availability

    Usually in 5working days
