Blue Sea Systems

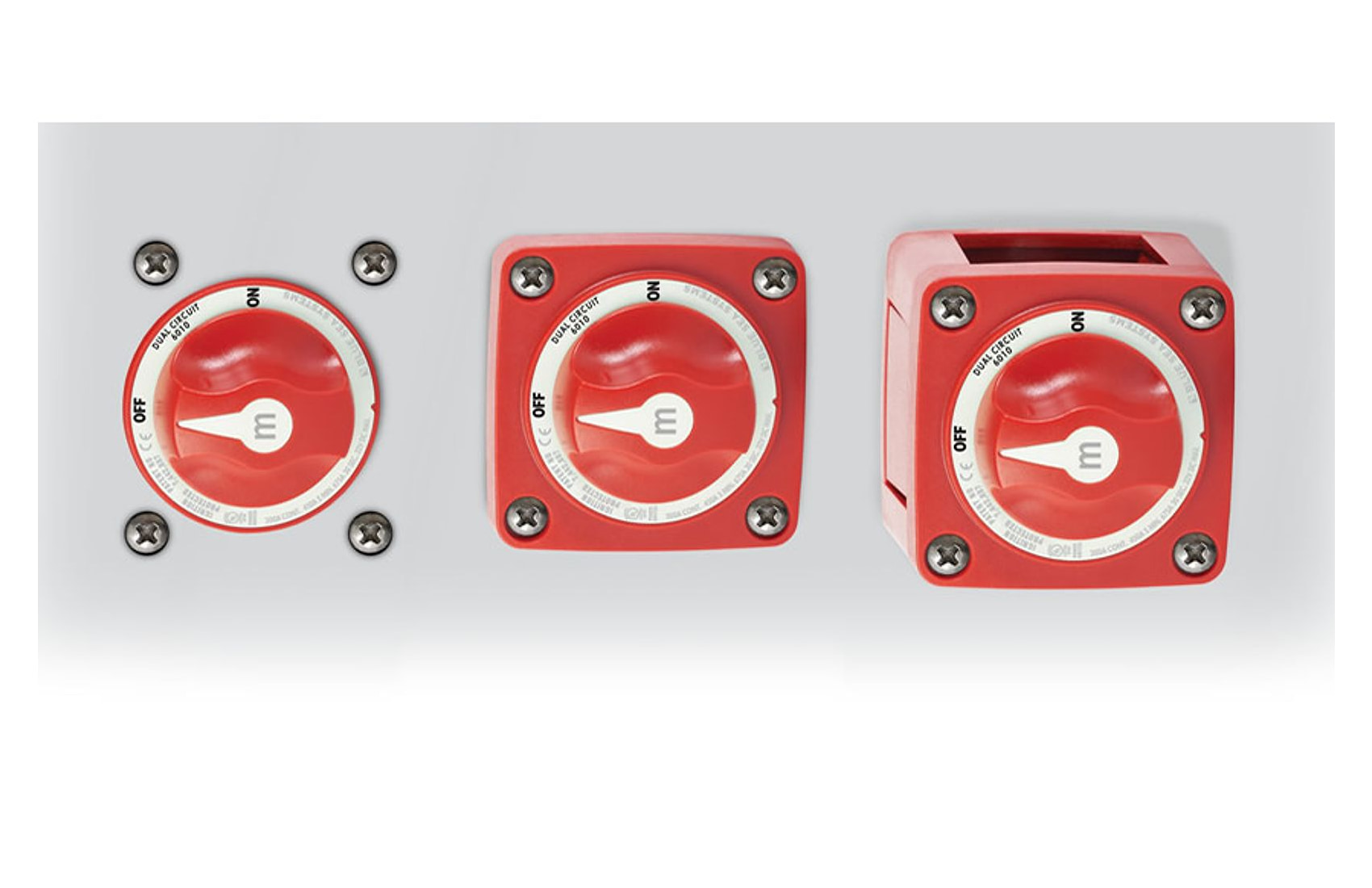

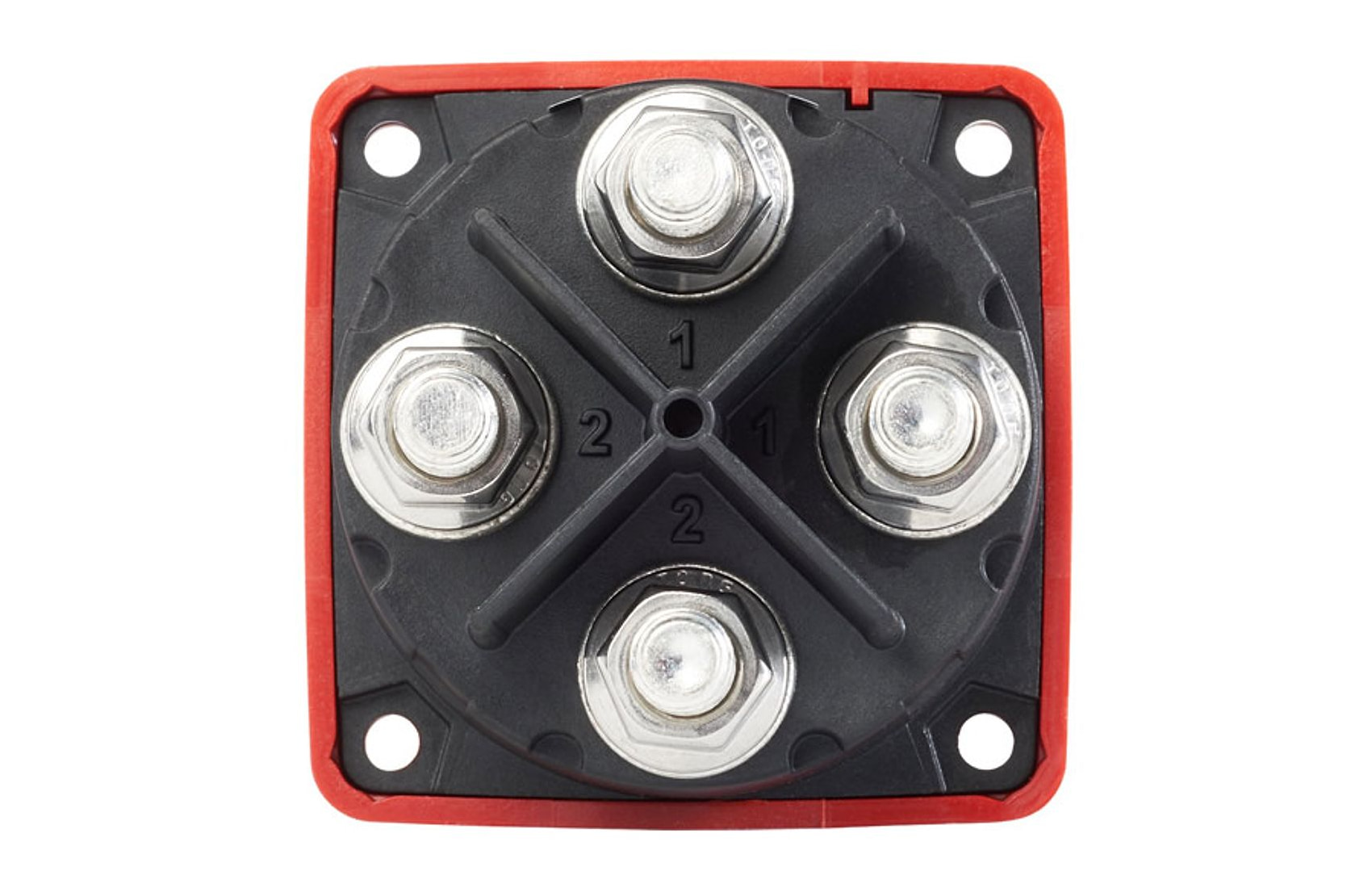

Mini Dual Circuit Switch
Κωδ. κατασκευαστή: 6010
69,84 €72,75 €-4%
○ Κατόπιν παραγγελίας
Η τιμή περιλαμβάνει ΦΠΑ 24%.
- ✓Mini dual battery Switch
- ✓Max: 32V DC 300A
- ✓Cable size 4/0 AWG 120mm²
- ✓2 Positions
- ✓Accept #10 Screw
- ✓Material: Tinned Copper
- ✓3/8" M10 Stud size
- ✓Red color
1
Περιγραφή
Simultaneously switches two isolated battery banks. Specifications Switch Type Dual Circuit Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32V DC Stud Size 3/8" Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 450A (5 min) Cranking Rating 30 sec 675A per circuit Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm²) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8" - 16 (M10) Weight 0.80lb (0.36 kg) Weight 0.80lb (0.36 kg)
Χαρακτηριστικά
Battery
Switch
Suitable for
2x batteries LiFePO4, Li-ion or Lead Acid batteries Boats, Cars, RVs
Color
Red
Extras Max
32VDC 300A Cable size 4/0 AWG 120mm² Accept #10 Screw Material: Tinned Copper 3/8" - 16 (M10) Stud size 2 Positions. Warranty 3-Years Country of Origin USA
