Heavy Duty Selector Switch
Κωδ. κατασκευαστή: 3003
○ Κατόπιν παραγγελίας
Η τιμή περιλαμβάνει ΦΠΑ 24%.
- ✓Heavy duty battery Switch
- ✓Max: 32V DC 500A
- ✓Cable size 4/0 AWG 120mm²
- ✓4 Positions
- ✓1/4" M6 Screw holes
- ✓Material: Tinned Copper
- ✓1/2" M12 Stud size
- ✓Grey color

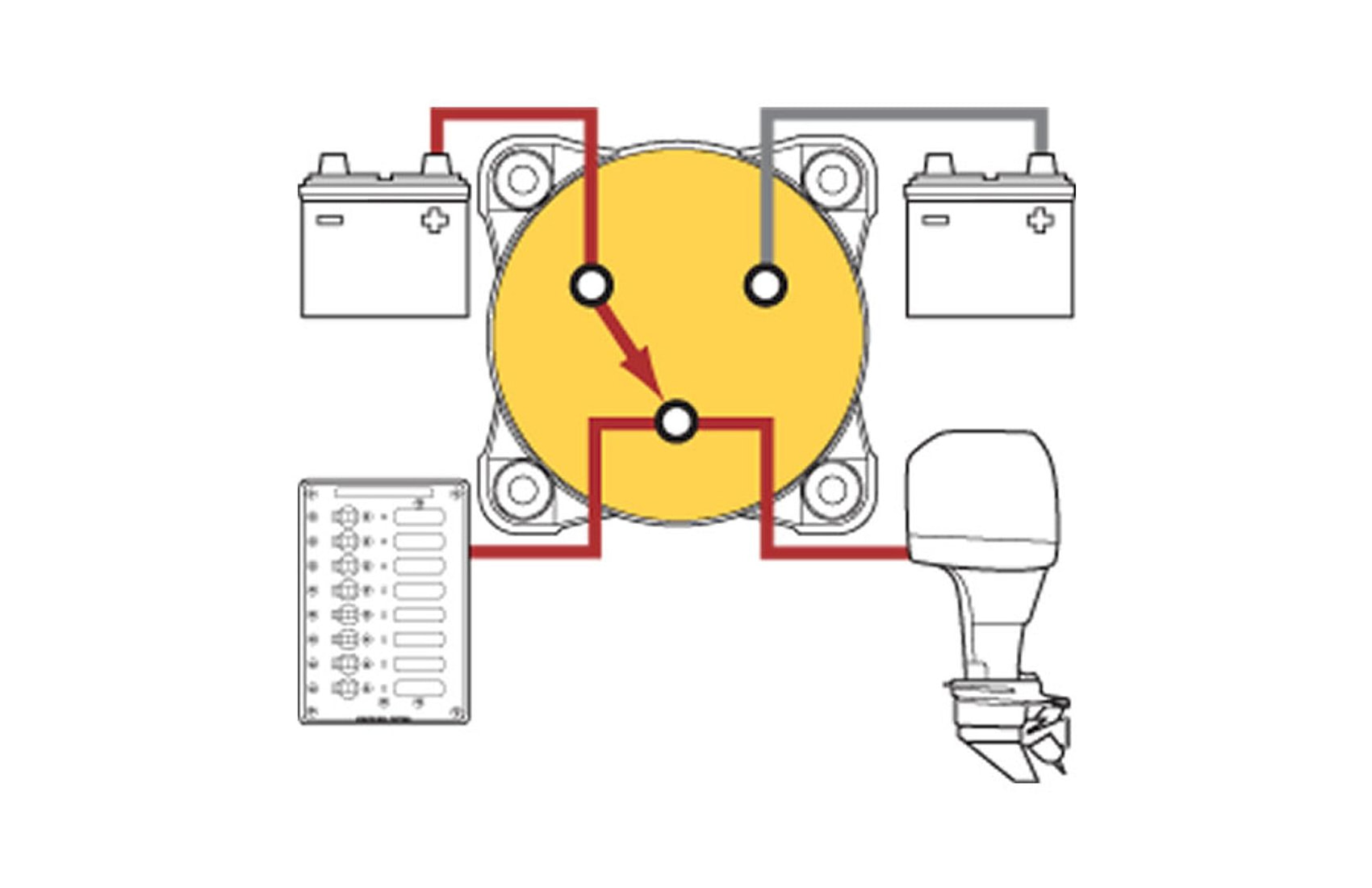

Switches isolated battery banks to all loads or combines battery banks to all loads Includes AFD (Alternator Field Disconnect) Make-before-break contact design allows switching between battery banks without power interruption Ignition protected—safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Accepts two 4/0 AWG (95mm²) battery cables Switch Type Selector 4 Position Color Grey Switch Positions 4 Battery Combine Yes Alternator Field Disconnect Yes Maximum Voltage 32V DC Terminal Stud Torque 220 in-lb (24.86 Nm) Continuous Rating 500A Intermittent Rating 700A (5 min) Cranking Rating 30 sec 1600A Battery Inputs 2 Cable Clearance For 4/0 AWG C
Χαρακτηριστικά
