Blue Sea Systems
150A BusBar 10 Gang
Κωδ. κατασκευαστή: 2301 · Κωδ. BLK: 782-0001
22,07 €22,99 €-4%
○ Κατόπιν παραγγελίας
Η τιμή περιλαμβάνει ΦΠΑ 24%.
- ✓Busbar for distribution
- ✓Max: 300VAC 130A
- ✓Max: 48VDC 150A
- ✓10 screw terminals
- ✓Positive/negative/ground distribution
- ✓Tin-Plated Copper
- ✓2 terminal studs
- ✓UL 94-V0 Rated
1
Περιγραφή

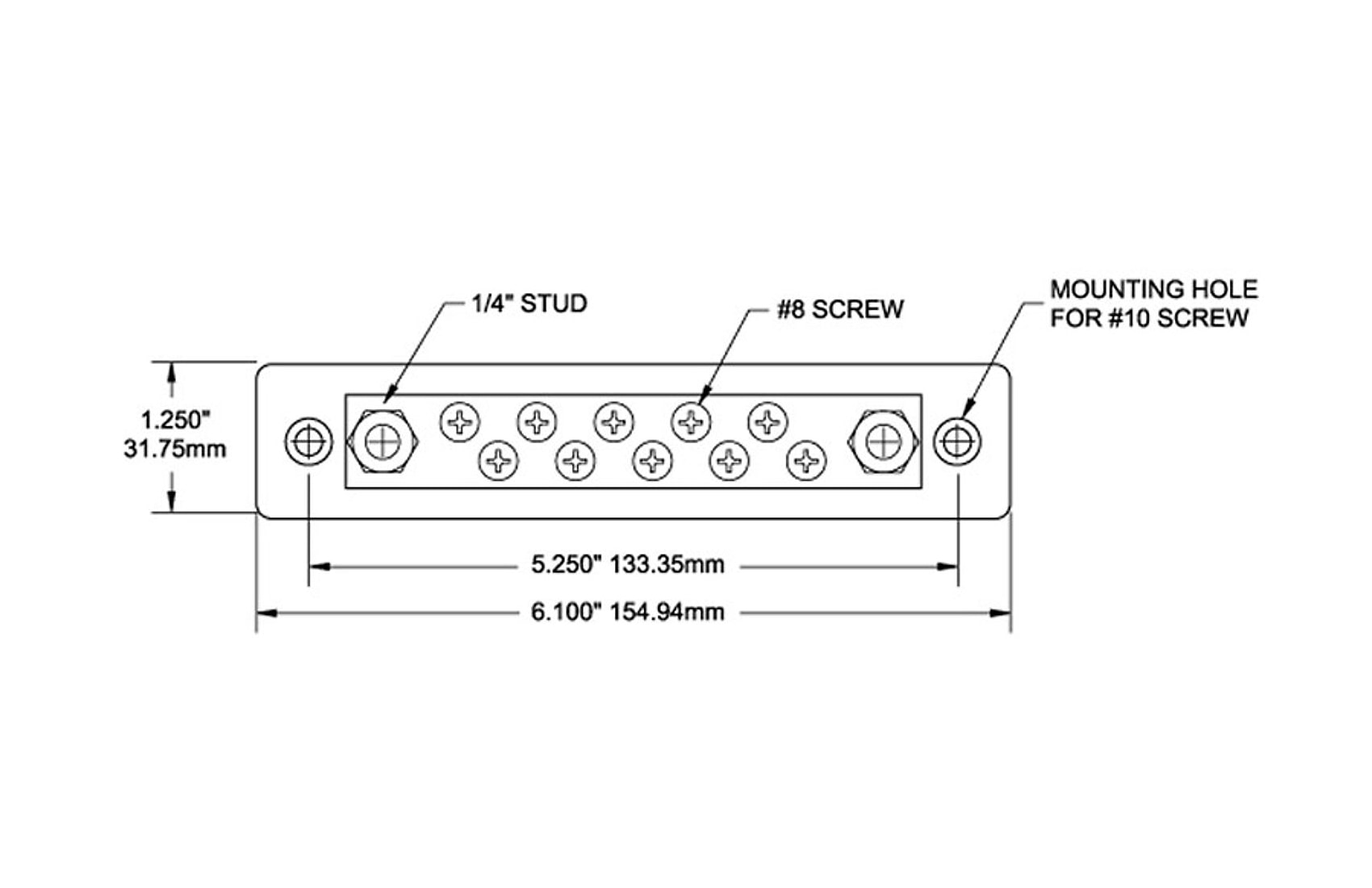

The industry standard busbar for positive or negative or ground distribution. Maximum Voltage 300V AC 48V DC Number of Screw Terminals 10 Number of Terminal Studs 2 Terminal Type 1/4" Stud #8-32 Screw Continuous Rating 130A AC 150A DC Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics Bus Material Tin-Plated Copper CDA 110 / UNS 11000 Screw Terminal Torque 15 in-lb (1.69 Nm) Stud Torque 60 in-lb (6.78 Nm) Weight 0.34lb (0.15 kg) Weight 0.34lb (0.15 kg)
Αρχεία & εγχειρίδια
BLKco-Brochure.pdfΧαρακτηριστικά
Suitable for
Car/boat/RV
Material
Electroplated Cooper
Extras Max
300VAC 130A, 48VDC 150A 10 screw terminals Positive/negative/ground distribution Tin-Plated Copper 2 terminal studs UL 94-V0 Rated. Warranty 3-Years Country of Origin USA
Total Weight (KG)
0.15
